Product Introduction

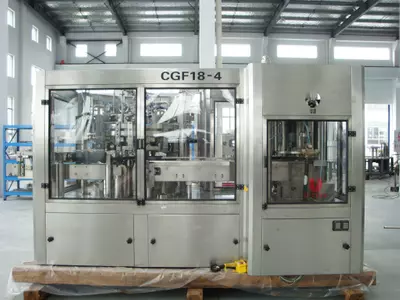

Beer can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our
country after the introduction and absorption.
It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling
speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop
filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the
maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up
and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.
The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high
efficiency, low noise and smooth operation. It adopts frequency conversion steeples speed regulation and is controlled by PLC
industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a
same working pace.
Machine Details
Filling heads
Original: China
Filling system consists of filling valve (exhaust valve), filling tanks, liquid level control devices, the filling valve lift
cylinder, filling tank height adjustment devices, etc.
Filling valve components, including liquid valve, the back (Note) trachea, air valves, centering hood, lifting mechanism, exhaust
valve

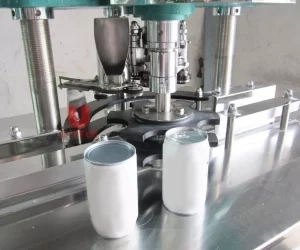

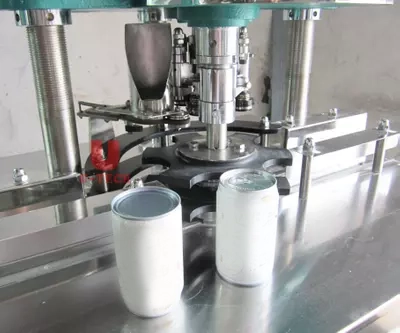

Capping heads
Cans of filling materials through the hook chain sent to positioning head rotation of sealing machine, the lid by the sending
device and the pressure head sent to mouth of cans, when the holding cans body care rise, the pressure head pressed mouth of cans,
Pre-sealed and then sealed the first real round of closures, cans through star wheel sent from the sealing machine.
Flat conveyor
<1> Energy saving. High efficient. Adapt to customer factory layout
<2> Special lubrication system, keep products clean, health, safety
<3> Extended service life
<4> Electric eyes design keep whole line running safety and quickly
<5> Overload protection mechanism to effectively ensure the safety of the machine
Main Features
1. Canceled screw and conveyor chains which enabling change bottle with different shapes easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.
3. The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4.  Isobaric filling valve is adopted, filling accurate and no liquid lose.
5. Â Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON.
Control System
| S / N | Name | Brand | Country |
| 1 | Main motor | ABB | Switzerland |
| 2 | Inverter | MITSUBISHI | Japan |
| 3 | PLC | OMRON | Japan |
| 4 | Touch screen | MITSUBISHI | Japan |
| 5 | Contactor | SCHNEIDER | France |
| 6 | Thermo- relay | SCHNEIDER | France |
| 7 | Air-break switch | SCHNEIDER | France |
| 8 | Proximity switch | TURCK | USA |
| 9 | Photoelectric switch | BANNER | USA |
| 10 | Air circuit system | SMC | Japan |
| 11 | Water pump | Southern | China |
