Automatic Bottle Mango Orange Guava Pulp Fruit Juice Making Filling Packing Machine Line

Loading...

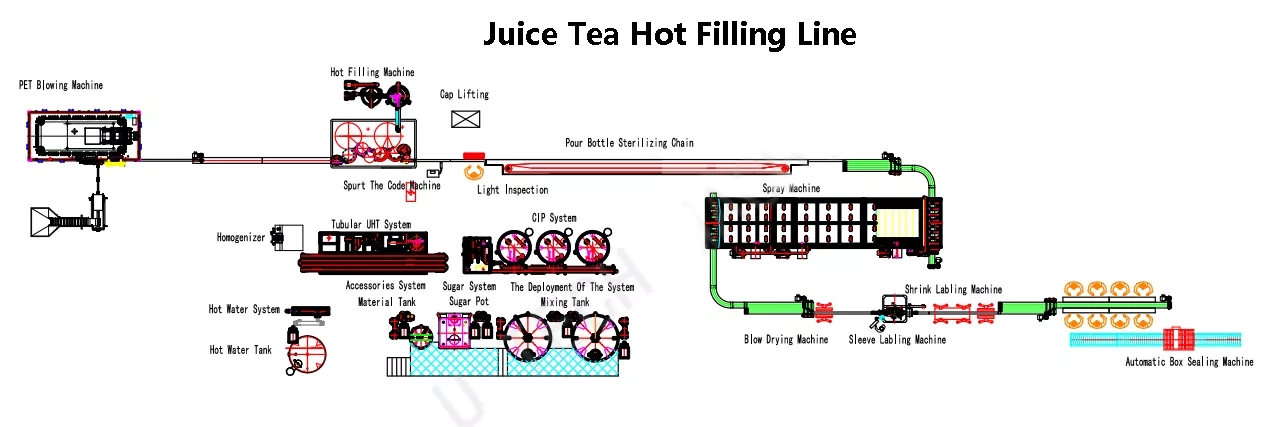

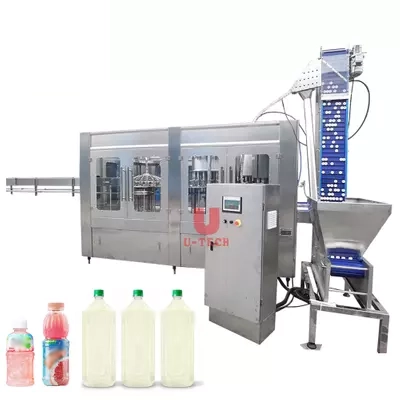

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml-2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

Enquiry This

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml-2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

Details Images

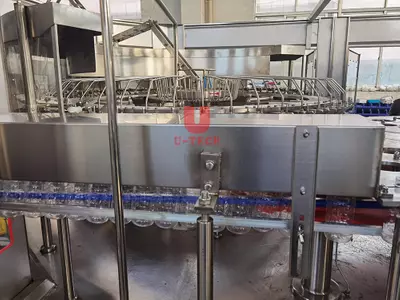

Washing heads

1). The rotary disk is fully made of SUS304 stainless steel. 2). Using company original tilting bottle clip, bottle clamp stuck bottleneck. 3). Using imported special efficient spray nozzle.

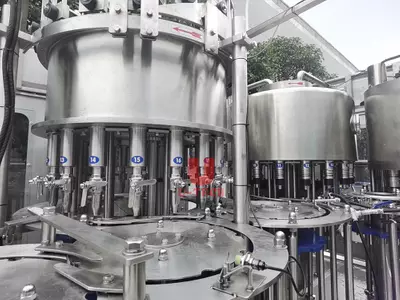

Filling heads

1). The washing bottle, filling, sealing are connecting with bottleneck transportation methods. 2). The rotating disk is all made of SUS304 stainless. 3). Filling method is gravity filling.

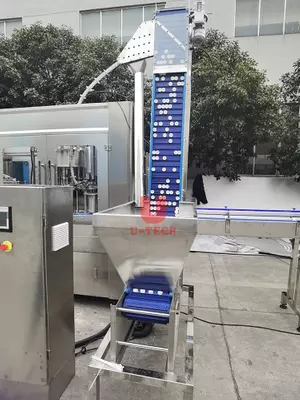

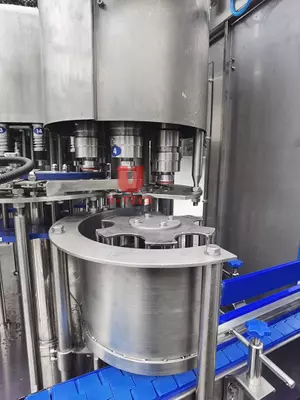

Capping heads

1).The capping machine is the highest precision in 3-in-1 unit machine
2).Full made of stainless steel SUS304

Main Features

1. The main frame machine of juice making machine adopts the automatic control technology of PLC and transducer with high degree of automatization.
2. The dynamical system of juice making machine is connected by transmission shaft with stable performance.
3. The filling principle of micro negative gravity increases the precision.
4. The advanced automatic lubricating system wihch equipped on juice making machine requires no manual effort and increases the life span of the machines.
5. The noise of juice making machine is low and the overall machine is easy to maintain.

Control System

S / NNameBrandCountry
1Main motorABBSwitzerland
2Inverter MITSUBISHI Japan
3PLCOMRONJapan
4Touch screenMITSUBISHIJapan
5ContactorSCHNEIDERFrance
6Thermo- relaySCHNEIDERFrance
7Air-break switchSCHNEIDERFrance
8Proximity switchTURCKUSA
9Photoelectric switchBANNERUSA
10Air circuit systemSMCJapan
11Water pumpSouthern China
