2500BPH Soft Drink Filling Machine

Loading...

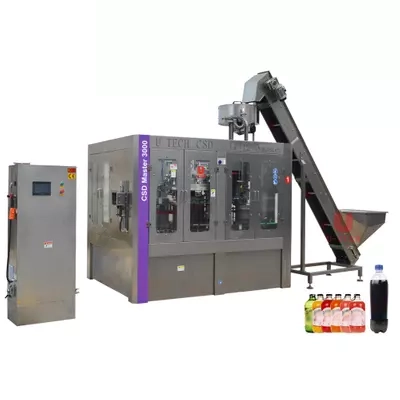

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

Enquiry This

Description and Flow

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

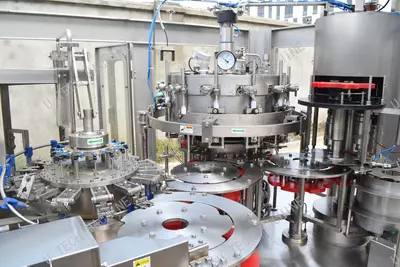

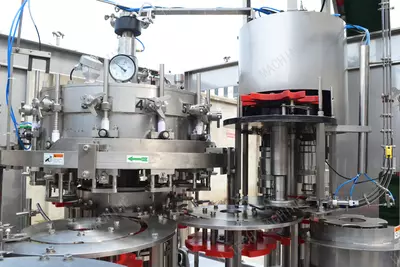

Machine Details

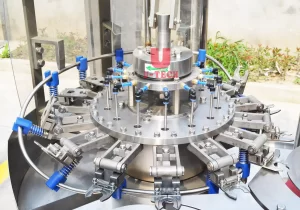

Washing heads

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

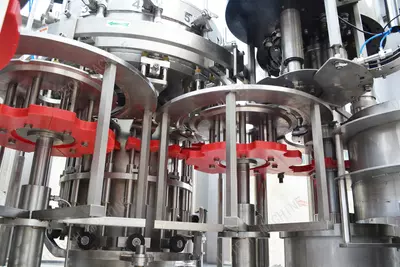

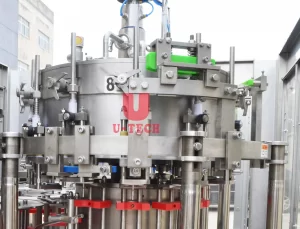

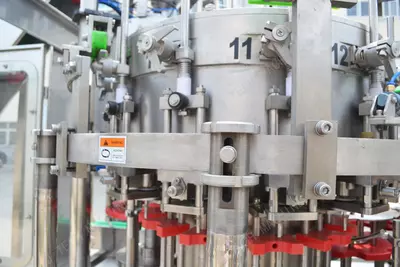

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

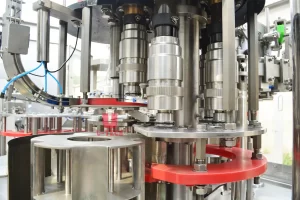

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ，Defective rate ≤0.2％ .

Main Features

1. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures

minimal loss of CO2 from the product.

2. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission

is located between the stainless steel working plat and the bracket and their waterproof is good,

sanitary and credible and adjusting and maintaining are very easy.

3. We design the filling valves on basis of foreign advanced technique for adapting high-speed hot

filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting

easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.

4. The filling operation is faster and more stable because the new type micro pressure filling system

is adopted.

Control System

S / NNameBrandCountry
1Main motorABBSwitzerland
2Inverter MITSUBISHI Japan
3PLCOMRONJapan
4Touch screenMITSUBISHIJapan
5ContactorSCHNEIDERFrance
6Thermo- relaySCHNEIDERFrance
7Air-break switchSCHNEIDERFrance
8Proximity switchTURCKUSA
9Photoelectric switchBANNERUSA
10Air circuit systemSMCJapan
11Water pumpSouthern China
